Jual Roots Blower RL80 Showfou is a root blower used as a tool or compressor to compress air in a confined space. This process is accomplished by utilizing the molecular movement of several substances already present within the device.
Advantages of 3 Lobes Design
- Less back flow, steady air flow rate, lower vibration and noise.
- Discharge pressure pulsation are reduced, so lighter loading of bearings and timing gears ensures the long servicing life.
- Running on the same operating speed, the 3 lobes blower can deliver large air flow and volume than conventional 2 lobes type.
- Adequate clearance between the rotors and the rotors with the casing ensure no contact during operation, and this make the efficiency even higher.
- The precision of rotors is fully controlled and variation of precision between blowers is almost nil because the rotors are produced by utilizing a precision NC machine.
- The rotors are dynamically balanced in the fabrication stage already, so these rotors are almost free from vibrations.
MAXIMUM PERFORMANCE
| SINGLE STAGE | DOUBLE STAGE | |
| MAXI. PRESSURE | 10,000mmAq (1.0kg/cm2) | 15,000mmAq (1,5kg/cm2) |
| MAXI. VACUUM | -6,700mmAq (-500mmHg) | -8,100mmAq (-600mmHg) |

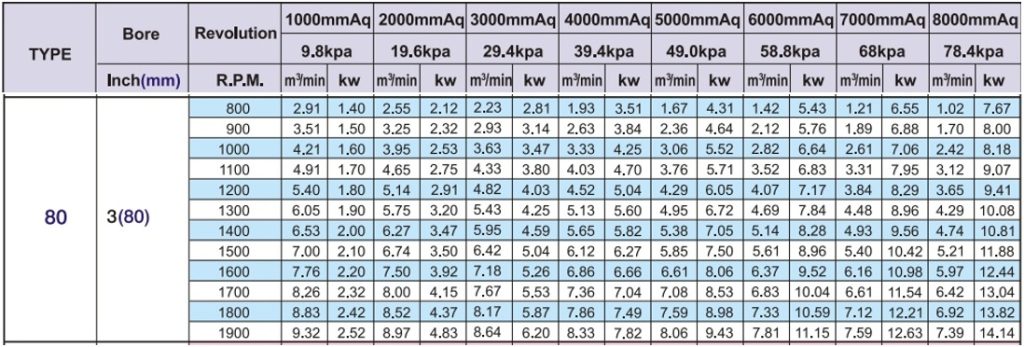

PERFORMANCE TABLE ROOTS BLOWER RL80 SHOWFOU
